Deploying

We use SemaphoreCI to deploy to test and production

Test

Deploying to https://rsr.akvotest.org is done automatically once a PR is merged to master.

Production

Currently, we use the master branch to promote changes to production. This a manual operation.

In order to deploy to production, the docker image must exist in the docker registry. At the moment, this is all tied to Akvo’s private, docker registry on Google Cloud.

The docker image is created during the deployment to the test environment or simply by merging into master.

Commands

Requirements

  • A token from zulip to send messages to the channel.

  • Access to Google Cloud (ask somebody from the DevOps team)

export ZULIP_TOKEN="YOURTOKENHERE"
ci/promote-test-to-prod.sh

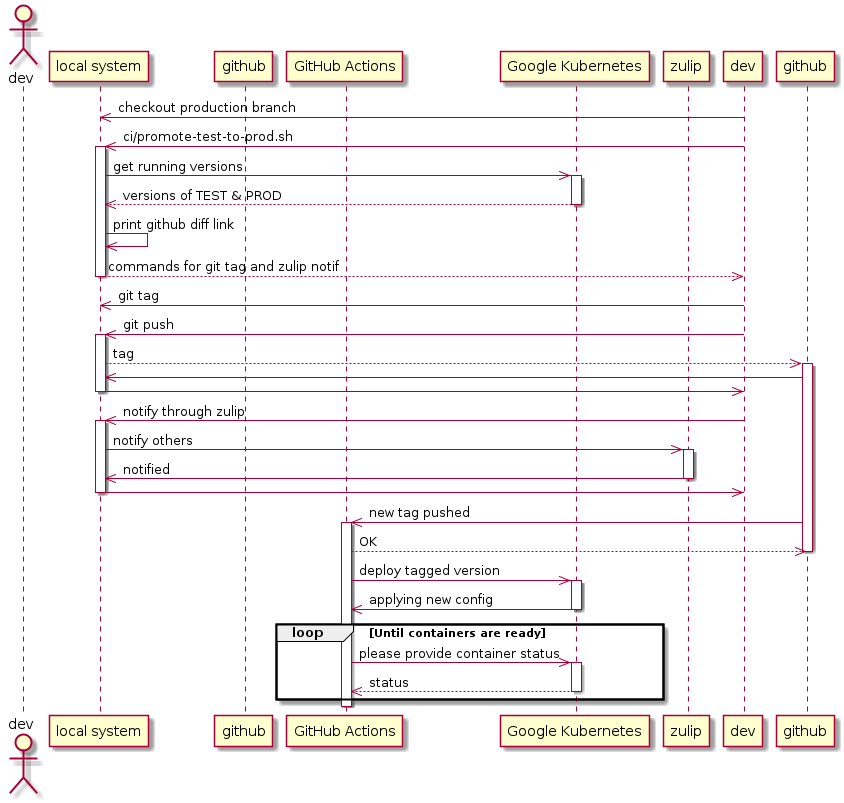

Sequence diagram

@startuml actor dev as developer participant local as "local system" participant github as Github participant semaphore as semaphoreCI participant kube as "Google Kubernetes" participant zulip dev ->> local: checkout production branch dev ->> local: ci/promote-test-to-prod.sh activate local local ->> kube: get running versions activate kube kube -->> local: versions of TEST & PROD deactivate kube local ->> local: print github diff link local -->> dev: commands for git tag and zulip notif deactivate local dev ->> local: git tag dev ->> local: git push activate local local -->> github: tag activate github github ->> local: local ->> dev: deactivate local dev ->> local: notify through zulip activate local local ->> zulip: notify others activate zulip zulip ->> local: notified deactivate zulip local ->> dev: deactivate local github ->> semaphore: new tag pushed activate semaphore semaphore -->> github: OK deactivate github semaphore ->> kube: deploy tagged version activate kube kube ->> semaphore: applying new config deactivate kube loop Until containers are ready semaphore ->> kube: please provide container status activate kube kube -->> semaphore: status deactivate kube end deactivate semaphore @enduml
